Description

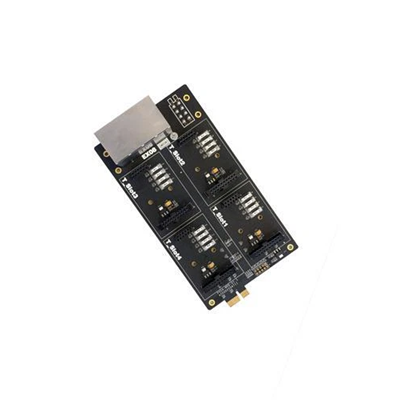

The Yeastar EX08 Expansion Board is an optional accessory designed to significantly enhance the connectivity and flexibility of compatible Yeastar PBX systems. It is an expansion card that is installed directly into a host PBX, providing additional physical slots for telephony modules. The EX08 board itself has four internal module slots, allowing businesses to add a combination of analog (FXS/FXO), BRI, or GSM/3G/4G modules to their system. This modular approach enables organizations to customize their communication infrastructure to their specific needs and scale it easily as their business grows, all without having to replace the core PBX hardware.

Key Features:

• Enhanced Connectivity: The board adds four internal module slots to the PBX, which can be filled with a variety of Yeastar modules, including S2 (2 FXS), O2 (2 FXO), SO (1 FXS/1 FXO), B2 (2 BRI), and GSM/3G/4G.
• 8 RJ11 Ports: The EX08 also features eight external RJ11 ports on its panel, providing a clean and organized way to connect up to eight analog or BRI lines.
• Compatibility: The EX08 is compatible with a range of Yeastar PBX models:
  • S-Series: S100 and S300
  • P-Series: P560 and P570
• Scalable Design: Multiple EX08 boards can be installed in a single PBX to meet high-volume connectivity needs:
  • The S100 and P560 can support up to one EX08 board.
  • The S300 and P570 can support up to two EX08 boards.
• Cost-Effective Solution: It allows businesses to extend the lifespan of their existing PBX hardware and avoid the significant cost of purchasing a new, larger system to accommodate new telephony lines.
