Description

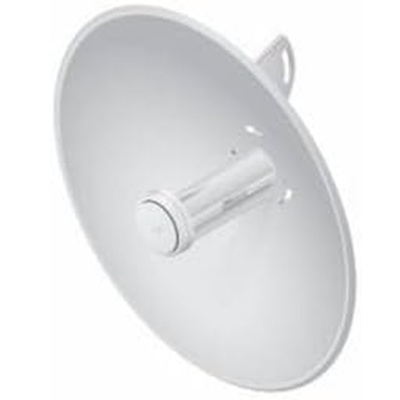

The Ubiquiti airMAX PowerBeam M5 400 (PBE-M5-400) is a high-performance, long-range outdoor wireless bridge designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) applications, leveraging Ubiquiti’s TDMA-based airMAX technology. It is a robust solution for extending networks over long distances, such as connecting buildings or delivering WISP services.

The device integrates a powerful radio with a high-gain dish antenna, using Ubiquiti’s InnerFeed technology to eliminate cable losses and ensure maximum efficiency. The focused beamwidth provides excellent performance in noisy RF environments, making it ideal for carrier-class links.

Key Features

• Long-Range 5 GHz Bridge: Operates in the 5 GHz frequency band, offering cleaner spectrum and supporting link distances of 25+ km (15+ miles).
• High Throughput: Achieves real TCP/IP throughput of 150+ Mbps, suitable for backhaul and high-capacity client connections.
• High-Gain Integrated Antenna: Features a powerful 25 dBi integrated parabolic dish antenna with Dual-Linear polarization for superior signal focus and noise immunity.
• airMAX Technology: Utilizes the proprietary airMAX (TDMA) protocol to eliminate hidden node collisions, significantly improving network scalability, latency, and throughput in PtMP setups.
• Gigabit Ethernet Port: Equipped with a 10/100/1000 Mbps Ethernet port to ensure the wired connection does not bottleneck the high wireless speeds.
• Rugged Design: Built with Outdoor UV Stabilized Plastic and robust hardware, offering high Wind Survivability (up to 200 km/h) and extreme temperature tolerance (-40 to 70° C).
