Description

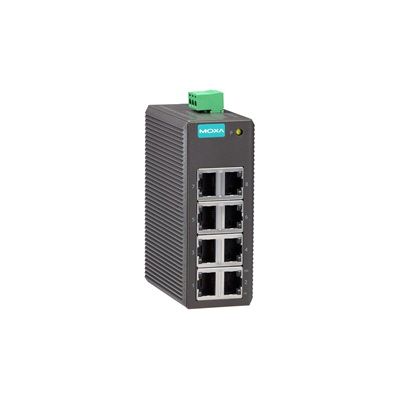

The Moxa EDS-308 is an 8-port unmanaged industrial Ethernet switch that provides reliable connectivity for a wide range of industrial applications. It features eight 10/100BaseT(X) RJ45 copper ports with auto MDI/MDI-X and auto-negotiation, ensuring a simple plug-and-play experience. The switch’s unmanaged nature means it requires no software configuration, which significantly simplifies deployment. However, it incorporates “smart” features that are crucial for industrial use, such as a relay output warning for power failure and port break alarms, alerting network engineers to potential issues.

The EDS-308 is built to withstand harsh industrial environments. Its rugged IP30-rated metal housing protects it from dust and is designed to resist high levels of shock and vibration. It is available in models with a standard operating temperature range of -10 to 60°C and wide-temperature models (-T suffix) that operate from -40 to 75°C. To ensure maximum uptime, the switch supports redundant dual DC power inputs with a wide voltage range of 9.6 to 60 VDC. This redundancy and robust physical design make the EDS-308 a dependable choice for applications in hazardous locations (Class I, Div. 2/ATEX Zone 2), factory automation, transportation, and more
