Description

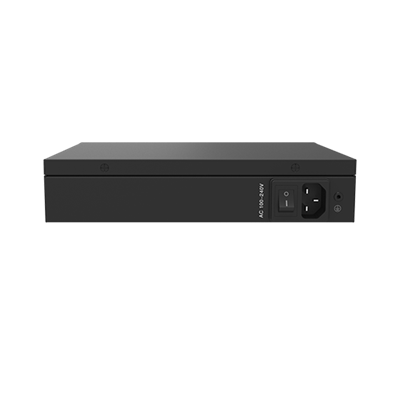

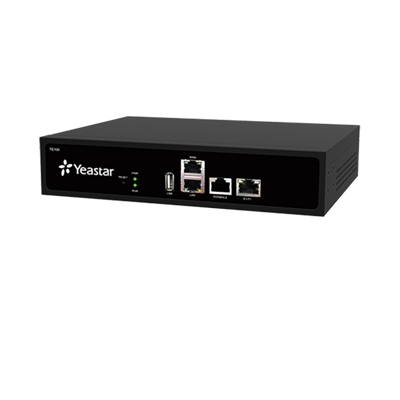

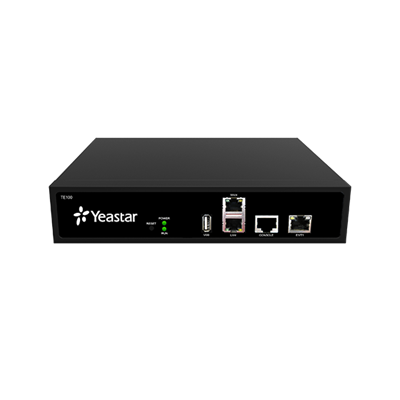

The Yeastar TE100 VoIP Gateway is a compact and powerful device designed to connect a modern VoIP network to a single digital E1, T1, or J1 trunk. It acts as a bridge, enabling businesses to leverage their existing digital telephony infrastructure while benefiting from the cost savings and advanced features of an IP-based communication system. The TE100 translates signals between the VoIP network (SIP) and the digital telephone lines, ensuring seamless voice communication. This gateway is an ideal solution for medium-to-large businesses that have an E1/T1/J1 line from a telecom provider and want to integrate it with an IP-PBX or a softswitch. It offers a high number of concurrent calls on a single port and robust reliability, making it a critical component for hybrid telephony environments.

Key Features:

• E1/T1/J1 Port: The gateway is equipped with a single E1, T1, or J1 port. This provides 30 concurrent calls for E1 (Europe/Asia) and 23 or 24 concurrent calls for T1/J1 (North America/Japan).
• SIP Protocol Support: The TE100 operates on the SIP protocol, ensuring broad interoperability with a wide range of IP-PBX systems, including Yeastar’s S-Series, Asterisk, and most VoIP service providers.
• Flexible Call Routing: It offers advanced routing rules, including Least Cost Routing (LCR), to ensure calls are handled efficiently and according to business rules.
• T.38 Fax over IP: Supports T.38 fax relay, allowing for reliable and secure fax transmission over the IP network.
• High Reliability: The TE100 is engineered with a solid-state design for high performance, stability, and continuous, long-term operation.
• Easy Management: The gateway is configured and managed through a user-friendly, web-based graphical user interface (GUI), simplifying setup and ongoing administration.
