Description

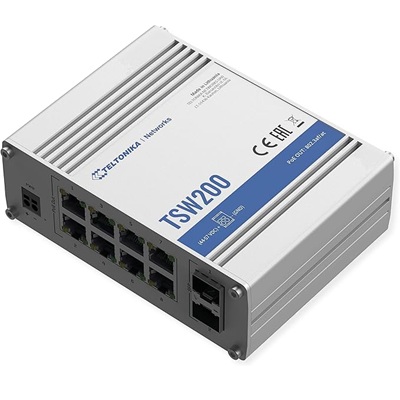

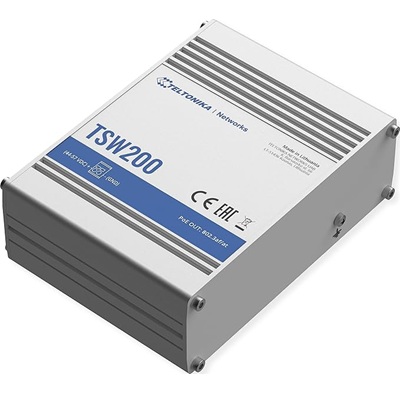

The Teltonika TSW200 is an industrial-grade, unmanaged Layer 2 Ethernet switch engineered for high-bandwidth and long-range communication. It features eight Gigabit Ethernet (10/100/1000 Mbps) ports, all of which support PoE+ (IEEE 802.3af and 802.3at). As a Power Source Equipment (PSE) device, it can provide up to 30 watts per port with a substantial total power budget of 240 watts, allowing it to power a wide array of devices such as IP cameras, wireless access points, and VoIP phones, thereby centralizing power and data cabling.

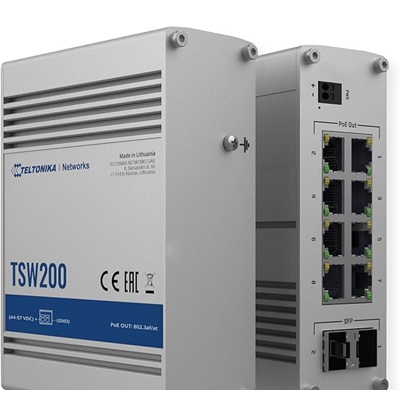

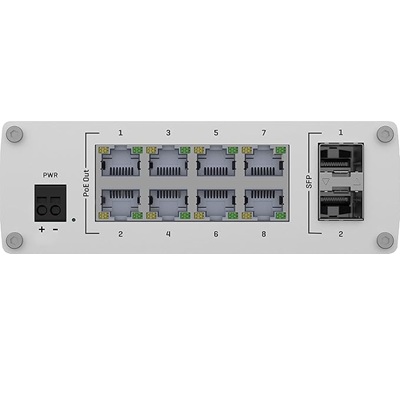

A key differentiator of the TSW200 is the inclusion of two SFP ports. These ports enable high-speed, long-range fiber-optic communication, making it an ideal solution for applications where devices are located beyond the 100-meter limitation of standard Ethernet, such as in large-scale video surveillance systems, industrial campuses, or parking lots. The switch operates on a wide input voltage range of 7-57 VDC, with a separate 44-57 VDC range required for PoE-out functionality. Like all of Teltonika’s industrial products, it is housed in a rugged full aluminum casing with an IP30 ingress protection rating and a wide operating temperature range of -40 °C to 75 °C. With a non-blocking bandwidth of 20 Gbps, the TSW200 ensures optimal performance under heavy network loads without bottlenecks
