Description

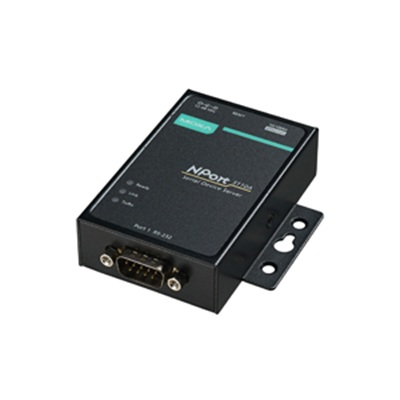

The Moxa NPort 5110A is a 1-port serial device server that bridges the gap between traditional serial communication and IP-based Ethernet networks. It is a member of the NPort 5100A series, which is known for providing a cost-effective and reliable solution for industrial connectivity. This specific model features a single RS-232 serial port (DB9 male connector) and a 10/100BaseT(X) Ethernet port with built-in 1.5 kV magnetic isolation.

The NPort 5110A is a user-friendly device with a 3-step web-based configuration tool that simplifies setup and commissioning. It supports a wide range of operation modes, including Real COM/TTY, TCP Server/Client, and UDP, ensuring compatibility with a broad array of software applications. For enhanced reliability in industrial environments, the device is built with a rugged metal housing and provides surge protection for its serial, Ethernet, and power lines, compliant with IEC 61000-4-5 standards. The device is also designed to be energy-efficient, with power consumption of less than 1 W. A built-in watchdog timer (WDT) ensures continuous operation by automatically rebooting the device in case of a system failure
