Description

The Fanvil PA2S SIP Paging Gateway is a compact and versatile IP audio broadcasting device designed to modernize and simplify public address (PA) and intercom systems. It is an ideal solution for a wide range of environments, including schools, offices, retail spaces, factories, and transportation hubs, where reliable and efficient audio broadcasting is essential. The PA2S seamlessly bridges traditional audio equipment with a modern IP network, providing a powerful, scalable, and cost-effective solution for a variety of paging and intercom applications.

A key feature of the PA2S is its ability to act as a two-way intercom and a one-way broadcasting system. It supports a single SIP line, allowing it to register as a standard extension on any SIP-based IP PBX or platform. It is equipped with a built-in 10W Class D amplifier that can directly drive a passive speaker, eliminating the need for a separate amplifier. For superior audio quality, it supports HD voice and wideband codecs like Opus, G.722, and G.711.

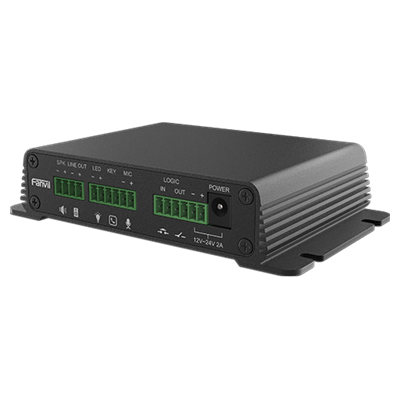

The PA2S offers a variety of I/O interfaces for maximum versatility. It includes:

• A 10W passive speaker output: To directly connect a single speaker for a simple paging zone.
• A 3.5mm audio output: To connect to an external active speaker or a larger external amplifier for multi-speaker, multi-zone systems.
• A 3.5mm mic input: To connect an external microphone for two-way intercom functionality.
• A short-circuit output: For connecting to an external device, such as an alarm or a strobe light, which can be triggered remotely.

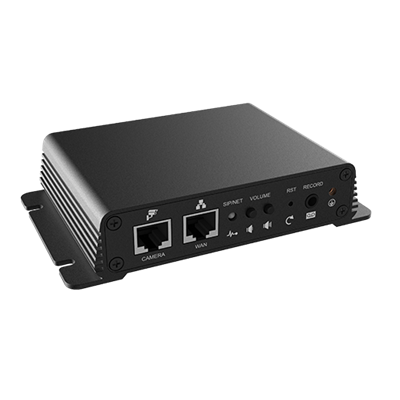

For robust connectivity, the PA2S is equipped with a 10/100 Mbps Ethernet port with Power over Ethernet (PoE) support. This simplifies deployment by delivering both power and data over a single cable, reducing installation costs and complexity. The device is easy to manage and configure through a web-based graphical user interface and supports auto-provisioning for large-scale deployments. The Fanvil PA2S is a reliable, durable, and highly functional solution that empowers organizations to create a professional and flexible IP-based PA system.
